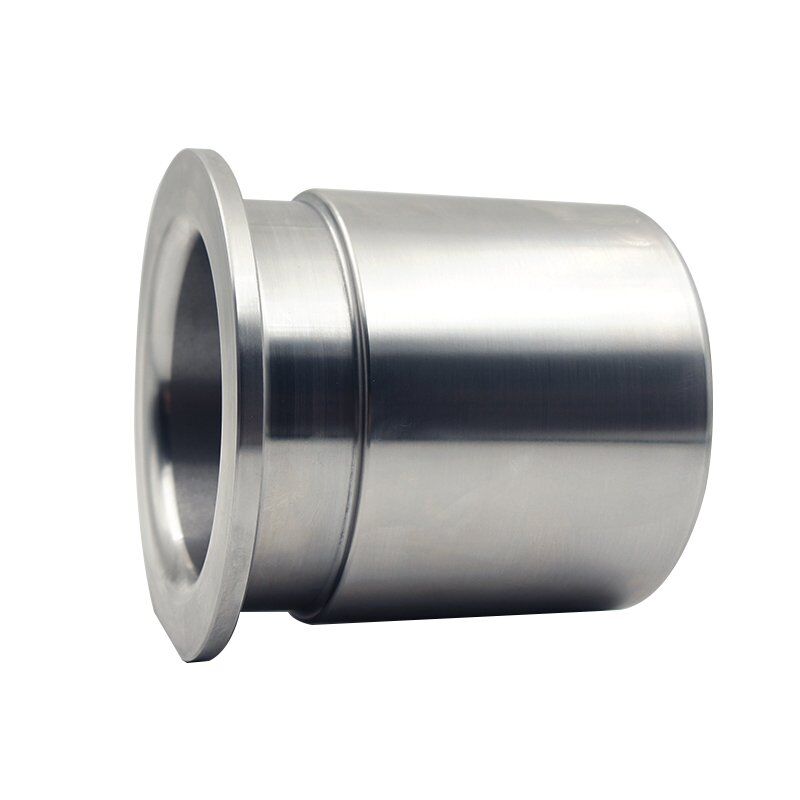

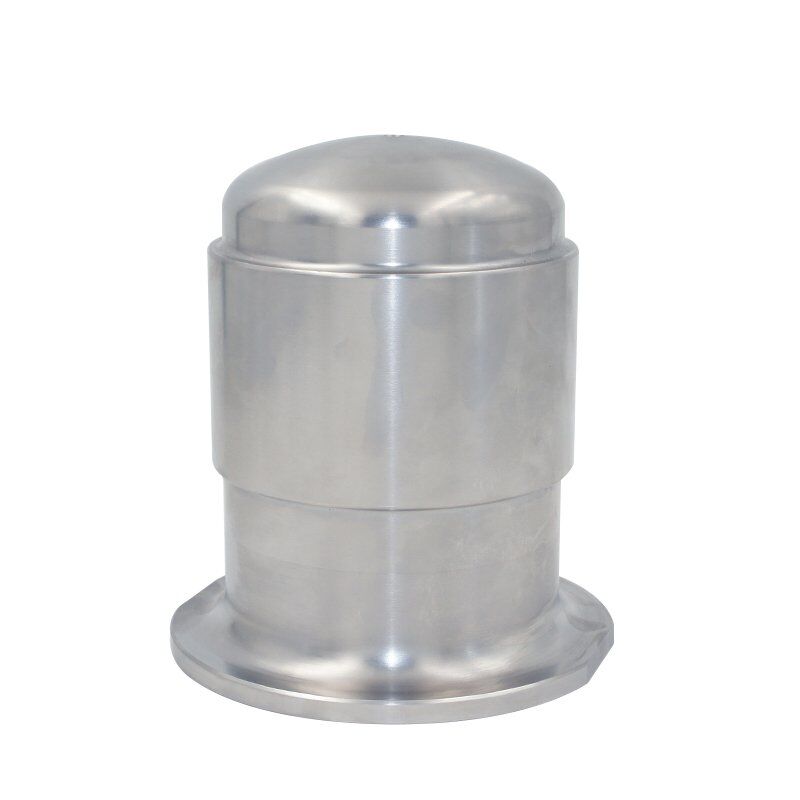

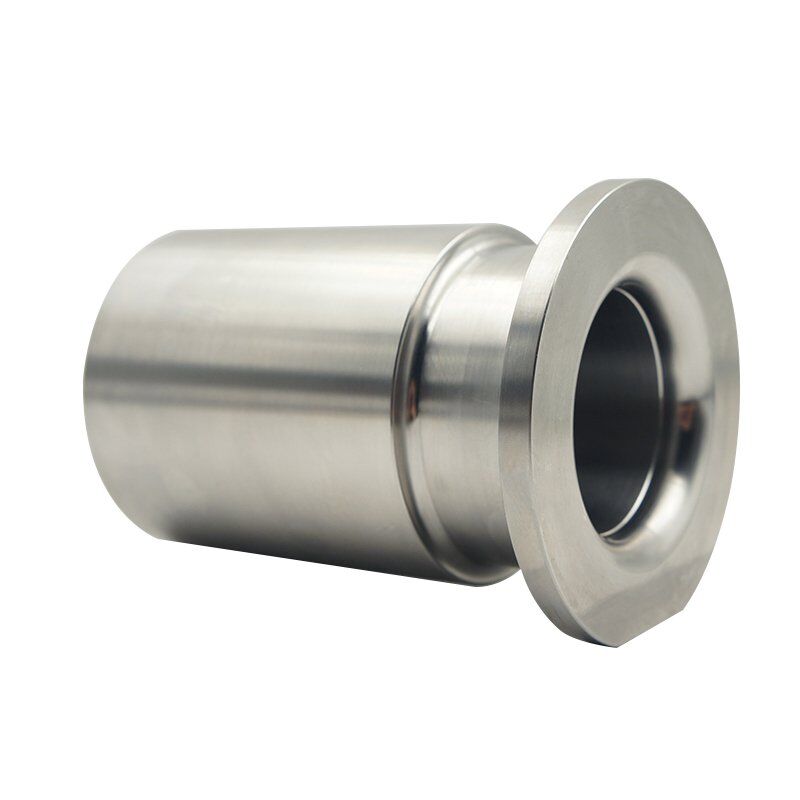

Sleeve for Steel Plant

The bushings or sleeves for galvanizing production lines can be made of different material grades as customers’ requirements or actual production conditions.

Additional information

Dimensions

as required

Material grades

STP 12, STP 4, STP 6, STP-T800

Working temperature

430-800℃

Product Details:

Hot-dip galvanizing is a form of galvanizing. When applying zinc to steel, when the metal is immersed in a bath of molten zinc at a temperature of approximately 450 °C (842 °F), the zinc forms with the surface of the base metal, a measure that protects the steel from further corrosion.

In the process of galvanizing, some equipment parts of the galvanizing line need to work in high-temperature zinc solution or zinc-aluminum solution for a long time, so a material that can have high-temperature resistance, corrosion resistance, and wear resistance at the same time is required. STP alloy or T800 alloy perfectly solves this problem and provides a good solution for galvanized production equipment components.

According to the production line’s different temperatures and rotation speeds, the bushings can be customized in the following grades.

  • STP 4  C: 0.8~1.3%, Mn: ≤1.0%, Si: ≤1.5%, Cr: 28.0~32.0%, Ni: ≤3.0%, Mo: ≤1.5%,  W: 12.5~15.5%, Co: Bal., Fe: ≤3%
  • STP 6  C: 0.9~1.4%, Mn: ≤1.0%, Si: ≤1.5%, Cr: 27.0~31.0%, Ni: ≤3.0%, Mo: ≤1.5%,  W: 3.5~5.5%, Co: Bal., Fe: ≤3%
  • STP 12  C: 1.1~1.7%, Mn: ≤1.0%, Si: ≤1.0%, Cr: 28.0~32.0%, Ni: ≤3.0%, Mo: -,  W: 7.0~9.5%, Co: Bal., Fe: ≤3%
  • STP T800 C: ≤0.1%, Mn: -, Si: ≤3.5%, Cr: 16.5~18.5%, Ni: -, Mo: 27.5~29.5%,  W: -, Co: Bal.

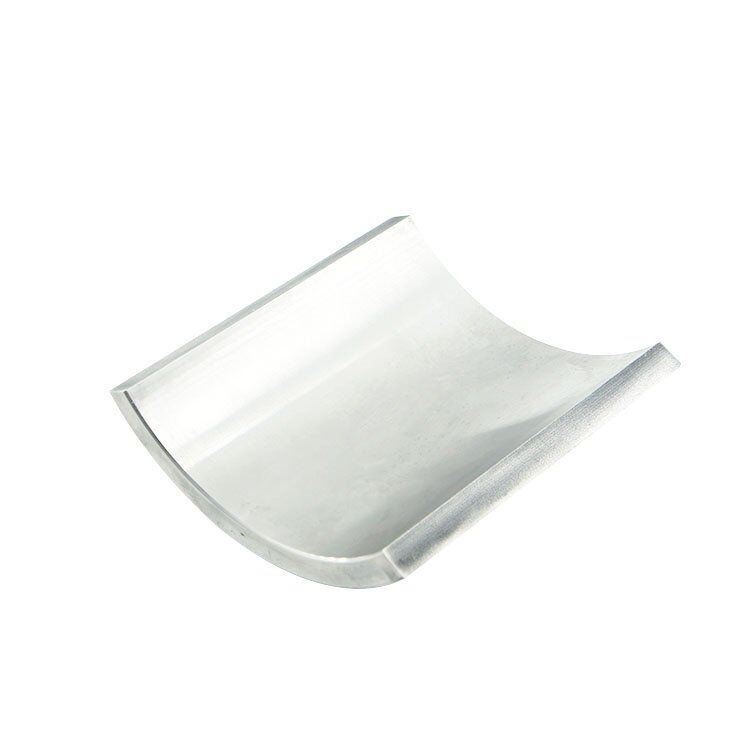

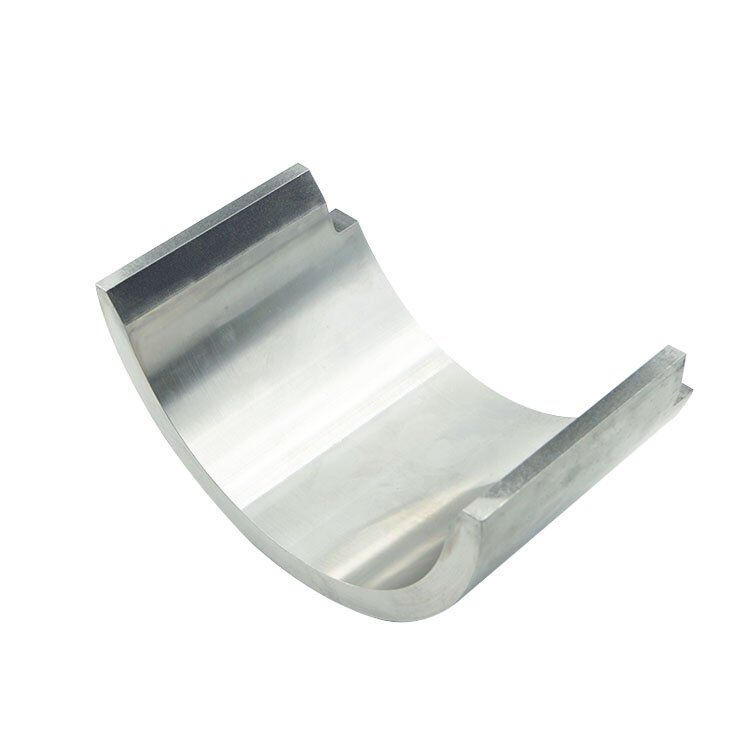

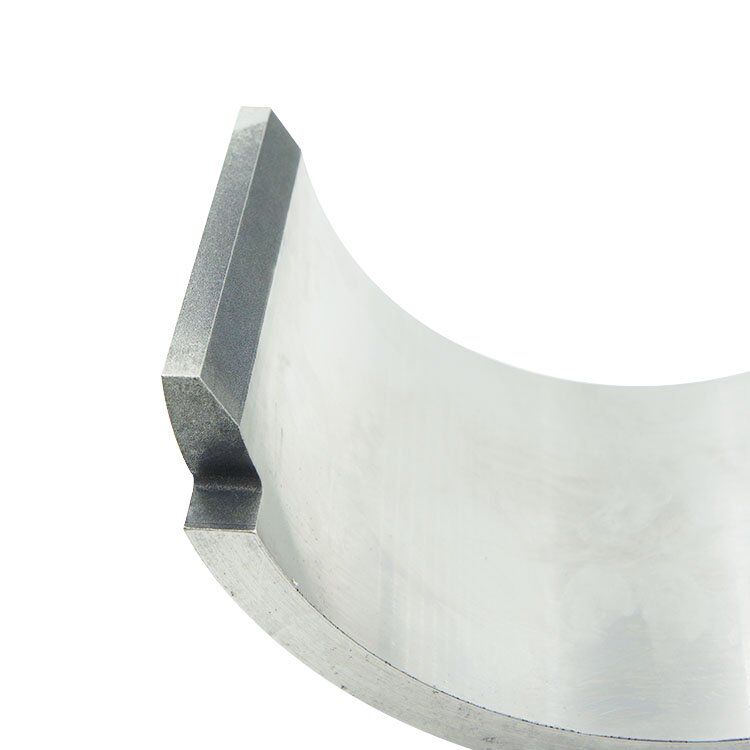

The STP bearings stop, segments, and other spare parts made of Si3N4, stainless steel and zirconia, etc., for the line are available too.
